Solution and application case of speed controller+actuator

调速控制器+执行器解决方案及应用案例

Solution and application case of speed controller+actuator

Solution

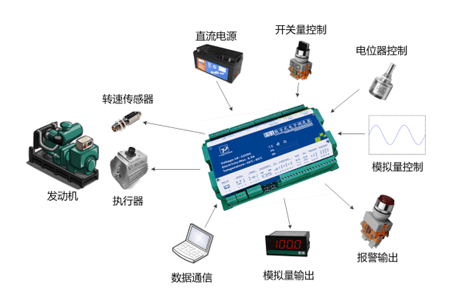

ES1电子调速器专门针对内燃机设计，依靠安装于飞轮端的磁电式转速传感器采集转速信号，通过调节执行器来控制内燃机的燃料供给，实现对转速和功率的调节，采用DC24V工作电源，可通过开关量、电位器及模拟量三种方式实现对目标转速的调整，检测到报警故障时以开关量的方式输出，通过软件设置可将执行器反馈、转速等运行参数以4~20mA模拟量的方式输出。

通常情况下与调速控制器（AC1-16）配套使用。

该套系统通过自动化调节手段，减低了客户人为操作机组的难度，对机组转速及功率的配合调节，能够有效的延长机组使用寿命，最大限度的提高能源转化效率。该产品因其灵活的配置、智能化的应用受到了业内人士的一致好评。

The ES1 electronic governor is specifically designed for internal combustion engines. It relies on a magnetic electric speed sensor installed at the flywheel end to collect speed signals, and controls the fuel supply of the internal combustion engine by adjusting the actuator, achieving the adjustment of speed and power. It uses a DC24V working power supply and can adjust the target speed through three methods: switch quantity, potentiometer, and analog quantity. When an alarm fault is detected, it is output in the form of switch quantity. Through software settings, the feedback of the actuator, speed and other operating parameters can be output in the form of 4-20mA analog quantity.

Usually used in conjunction with the speed controller (AC1-16).

This system reduces the difficulty of manual operation of the unit by customers through automated adjustment methods. The coordinated adjustment of unit speed and power can effectively extend the service life of the unit and maximize energy conversion efficiency. This product has received unanimous praise from industry insiders for its flexible configuration and intelligent application.

现场应用

Field application

应用案例1

主机类型：

额定转速：

额定功率：

应用模式：

配套产品：

Application Case 1

Host Machine Type：

Rated Speed：

Rated Power：

Application Mode：

Supplementary Product：

装机应用

Application

应用案例2
